Pre-punch
|
Fully Automatic Pre-punch Cold Roll Forming Machine
|
||||
| model: | G240; G280; G400; G460 | |||
| type: | L; LN; CL; CLN | |||
|
Fully Automatic Pre-punch Cold Roll Forming Machine
|
||||
| model: | G240; G280; G400; G460 | |||
| type: | L; LN; CL; CLN | |||
|

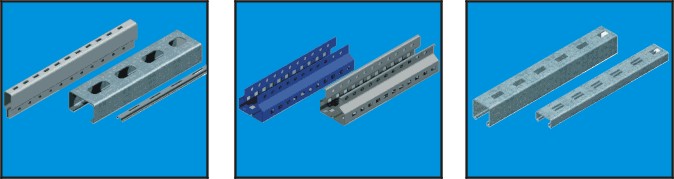

Product examples
|
||||
 |
||||
|

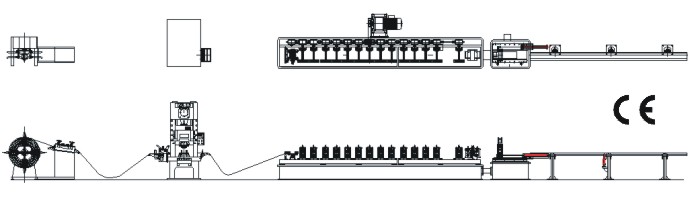

Roll Forming Machine (Rollformer) Layout
|
||||
 |
||||
|
Flow Chart of Production
|
||||
|
Uncoiler (coil) →Lever→NC Feeder→Pre-punching→Roll forming main machine( including PLC control cabinet) →Hydraulic automatic cutting device→Products run out table |
||||
|

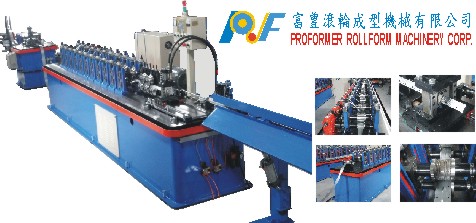

A. Wall Corner Roll Forming Machine (Rollformer)
|
||||
 |
||||
