Slitting line
|
Fully Automatic Slitting line
|
||||
| Material Width | Max. 1500mm | |||
| Thickness | 0.3-3mm | |||
| Speed | Max 100M/min | |||
|
Fully Automatic Slitting line
|
||||
| Material Width | Max. 1500mm | |||
| Thickness | 0.3-3mm | |||
| Speed | Max 60M/min | |||
|
Slitting linemachine Pictures & Layout
|
||||
|

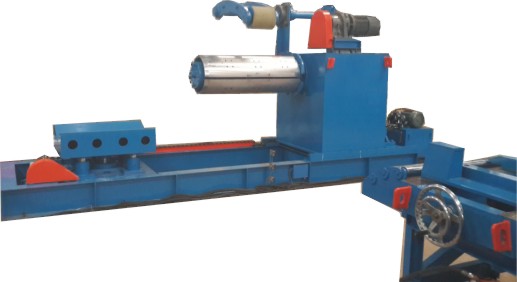

1. Uncoiler (De-coiler)
|
||||
|
|
||||

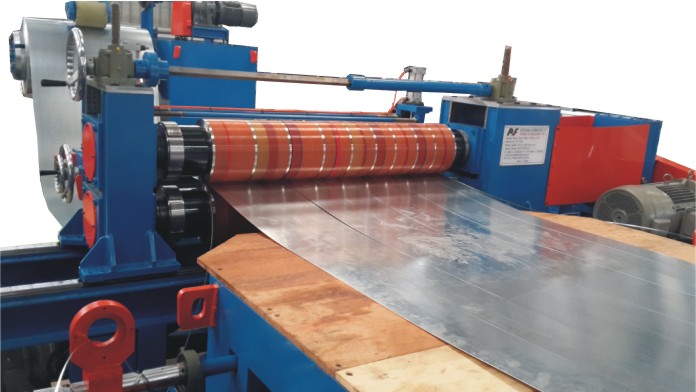

| 2. Slitter | ||||
|
|
||||

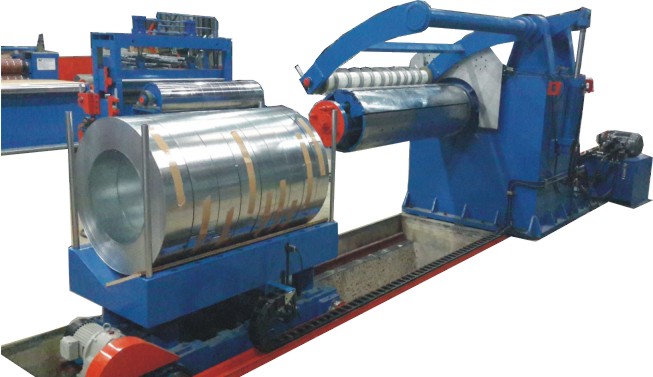

| 3. Recoiler | ||||
|
|
||||

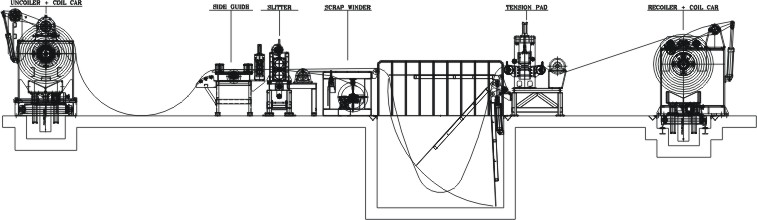

| 4. Layout | ||||
 |
||||
|
Flow Chart of Production
|
||||
|
Uncoiler (coil) →Side guide →Slitter →Scrap winder→Tension Pad→Recoiler |
||||
